Sony Playstation (4 ª Generación) __________________________
PlayStation es una videoconsola de sobremesa de 32 bits, lanzada por Sony Computer Entertainment el 3 de diciembre de 1994 en Japón. La consola fue pionera en el empleo del CD-ROM como soporte de almacenamiento para sus juegos, prescindiendo de los cartuchos convencionales que eran usados en la mayoría de videoconsolas de la época. Sin embargo, no fue la primera consola que usara CD-ROM ya que la Amiga CD32 incorporó previamente dicho adelanto.
PlayStation se considera la videoconsola más exitosa de la quinta generación tanto en ventas, como en popularidad. Además de la original se lanzaron dos versiones más, la Net Yaroze y la PSone. Tuvo gran éxito en emplear el CD-ROM dentro de su hardware, a pesar de que otras compañías ya lo habían empleado, tales como: SEGA (Sega CD), Panasonic (3DO), Phillips (CD-i), Snk (Neo Geo CD) y Atari (Atari Jaguar). Dichas compañías tuvieron poco éxito al emplear el CD-ROM como soporte para almacenar juegos. Se estima que en todo el mundo Sony logró vender 104,25 millones de unidades de su videoconsola en 10 años. Fue descontinuada en 2005, y su último título fue FIFA Football 2005.

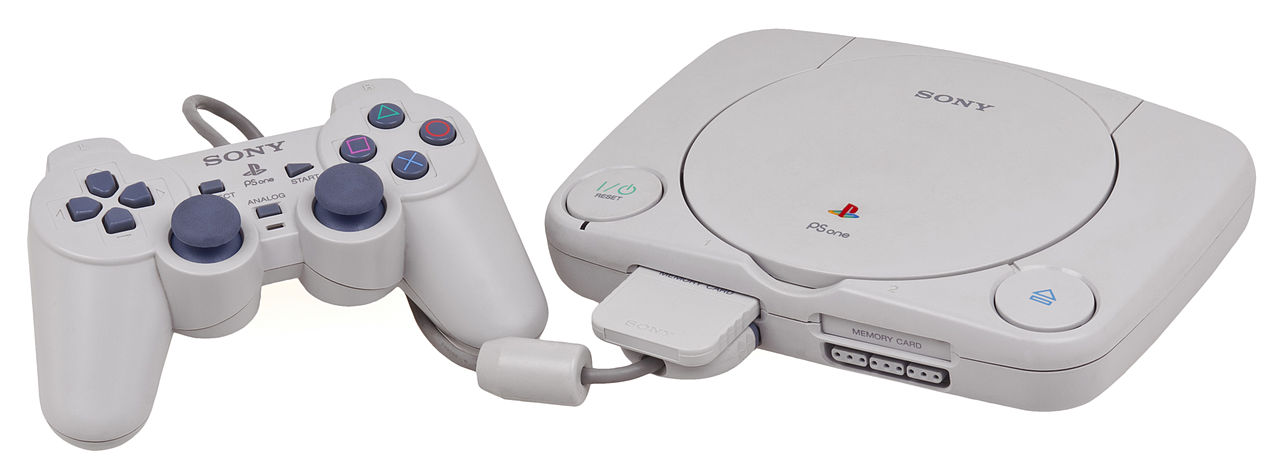

The PS one (alternatively spelled as PS One or PSone) is a smaller, redesigned version of the original PlayStation platform.[6] (Dimensions are 38 mm × 193 mm × 144 mm versus 45 mm × 260 mm × 185 mm.) It was released on July 7, 2000,[7] and went on to outsell all other consoles throughout the remainder of the year—including Sony's ownPlayStation 2 (yet the PlayStation 2 overtook this eventually).[6] The PS one is fully compatible with all PlayStation software. This also serves as the final model/revision for the entire PlayStation lineage.
There were six differences between the PS one and the original PlayStation.
Instead of having a separate reset button, the user "resets" this console simply by turning it off and then on again (the power button also has the word "RESET" on it to reduce confusion by users reading a game manual referencing a reset button that is effectively nonexistent).
The system menu Graphical User Interface was changed to a gray blocked background with 2 icons (Memory Card placed on a red bar and CD Player placed on a yellow bar). This is a slightly modified version of the menu used on early PAL PlayStations (SCPH-1002–SCPH-5552).
There was an added protection against the use of modchips (by changing the internal layout and making previous-generation modchip devices unusable).
The original PlayStation's parallel and serial ports were omitted. These ports allowed multiple consoles to be connected for multiplayer, or to connect a console to debugging software, as well as to third-party game enhancement devices such as the GameShark.
Sony also released a version with a 5" LCD screen and an adaptor (though it did not have a battery: it is powered by plugging the adaptor in a main socket, or in a car). It was called the Combo pack. However, it includes a headphone jack (for headphones or other audio connection) and an AV mini jack for connecting camcorders or other devices.
The previous The Best CD-Reader article was totally outdated as we now know more about the SafeDisc & SecuROM protections than back when it was written. There for we've created this article on how to make a working backup of a Protected Game CD or when this is not possible, because of hardware limitation, to at least be able to play a Protected Game CD from an imperfect backup.
It is still possible to create working Backups of most Copy Protected game CDs without the use of additional patches. The only thing required is a CD-Reader & CD-Writer which can read & write RAW DAO & Sub-Channel Data and software which supports writing in RAW Mode with Sub-Channel Data.
These software packages are:
Alcohol 120% - The best available Game Backup software currently available!
When it is not possible to select the RAW Mode then most likely the CD-Reader or CD-Writer does not support this mode. It is however still possible to make a backup but additional tools are required to remove the actually protection (see Non RAW Backups).
There are a few utilities available which can identify which CD Protection is being used on your game CDs.
Here is a complete overview of these tools, available @ CD Media World:
The best tool available is Protection ID as it detects all available CD protections & is updated regularly! Clony XXL is also a good alternative but is not updated anymore!
If your CD-Writer/Reader does not support RAW writing/Reading then it is not possible to make a 100% working standalone backup but it is still possible to play a backup using these utilities:
Executable UnwrappersThese tools are able to remove the CD Protection from the main executable which starts the game.
Protection EmulatorsThese tools run in the background and intercept calls from the CD Protection to the CD-Reader, to check if the original CD is in the reader, and always tell that everything is ok.
The creators of the SafeDisc protection have added a "blacklist" feature into their protection to detect if one of the above Protection Emulators is active in memory. This can be the reason that a game is not working (even original CD's), just upgrade to the latest version (if available) or temporarily disable the emulator!
For example MaxPayne v1.01 was blacklisting DAEMON Tools v2.74 & PlayBackup v2.1. The MaxPayne blacklist problem was again fixed in DAEMON Tools v2.79. But keep in mind that this process will happen over and over again. It's just a cat & mouse game with every new version of the SafeDisc v2/v3 protection!
Most of the Philips, Lite-On & Plextor CD-Writers can handle any CD Protection, a lot of CD-Writer manufacturers have been using Philips drives in their own drives so these will also work fine. Here is an overview of the Philips CD-Writers to date:
Here are a few websites which go deeper into this matter:
CloneCD - Manufacturers of CD recordersA complete overview of all available CD-Writers which are compatible with CloneCD (and in which mode they work the best).
Here are the instructions to make a working backup of most Protected CDs using Alcohol 120% in combination with a CD-Reader/CD-Writer which can both can handle RAW DAO:
Select the CD/DVD Device from which the Game CD is being read.
Select the CD/DVD protection from the Datatype pull-down button at the bottom of the window. This will auto-configure Alcohol 120% for the optimum backup settings.
When ready Click the [Next >] button.
Select "Image Location" where the Game CD Image should be stored.
When ready Click the [Next >] button.
Select the "CD/DVD Recorder" to which the CD Image will be written to. All settings are again auto-configured for the optimum backup settings.
When ready Click the [Start] button.
Play the game!
NOTE:
Keep in mind that some CD/DVD protections, like TAGES& StarForce, can NOT be backed up.
Here are the instructions to make a working backup of most Protected CDs using CloneCD 4 in combination with a CD-Reader/CD-Writer which can both can handle RAW DAO:
Create the following directory (if it exists already empty it):
<TempDir>: C:\TEMP\CD
Create a CD-Image using CloneCD 4 with these Game CD settings:
Data Read Settings Tab:
Set Read Speed Data to 1x (176 kByte/s)
Select Read SubChannel Data from Data Tracks (default)
Select Regenerate Data Sectors (default)
Audio Read Settings Tab:
Set Read Speed Audio to 1x (176 kByte/s)
Set Audio Extraction Quality to Medium (Fast) (default)
Select Read SubChannel Data from Audio Tracks (default)
UnSelect Only read the first Session (default)
Error Handling Tab:
Set Fast Error Skip to Automatic (default)
Set Sector Skip to 100 (default)
UnSelect Abort on Read Error (default)
Select Don't report read errors (default)
Select Intelligent Bad Sector Scanner (default)
When ready burn the modified CD-Image a CD-R using CloneCD 4 with these Game CD settings:
Set Write Speed to any desired speed
Select Don't Repair SubChannel Data (default)
Select Always close last Session
Play the game!
Here are the instructions to make a working backup of most Protected CDs using CloneCD 3 in combination with a CD-Reader/CD-Writer which can both can handle RAW DAO:
Create the following directory:
<TempDir>: C:\TEMP\CD
Create a CD-Image using CloneCD 3 with these settings:
Set Read Speed to 1x (176 kByte/s)
Select Read SubChannel Data from Data Tracks
Select Read SubChannel Data from Audio Tracks
Select Fast Error Skip
Set Read Retry to at least 5
Set Error correction to None
UnSelect Don't report bad sectors
UnSelect Intelligent Bad Sector Scanner
When ready burn the CD-Image a CD-R using CloneCD 3 with these settings:
Set Write Speed to any desired speed
Select RAW DAO
Select Don't Repair SubChannel Data
UnSelect Simulate Writing (if available)
Select Burn Proof/Just Link (if available)
unSelect Perform Laser Power Calibration
unSelect Wait until Buffers are full
Select Always close last Session
Play the game!
NOTE:
CloneCD v4 includes a CloneCD Tray utility which is active when your startup your PC. This utility includes a feature Hide CDR Media which can be very helpful when playing a backup from a CD-Writer. Some games try to detect if they are run from a CD-R media and this tool let's them think it is an original CD.
Keep in mind that some CD/DVD protections, like TAGES& StarForce, can NOT be backed up.
Here are some general hints when making a 1:1 CD-Copy:
Use your CD-Writer to also read the CD-Image - In most cases the CD-Writer can handle more protections!
To avoid coasters always make a CD-Image on harddrive before writing it to a CD-R.
Read the CD-Image at 1x or at a maximum of 8x speed. Reading the CD-Image at 1x speed takes a long time to complete but it is the safest speed to correctly read the image from any CD-Reader. Most modern CD-Readers can handle faster speeds. Just experiment!
CD-Writer software like Adaptec Easy CD Creator will NEVER be able to copy protected CDs and in most cases only interferes with other CD-Writers software! Software like CloneCD, Nero & CDRWIN are far better products!
The instructions shown on this page only show how to remove a CD-Protection, like SafeDisc or SecuROM, from the main executable but most of the games also have a CD-Check in the main executable. In this case the original or backup CD is required to play the game. No-CD Patches are needed to bypass the additional CD-Check(s), these are available at GameCopyWorld.
